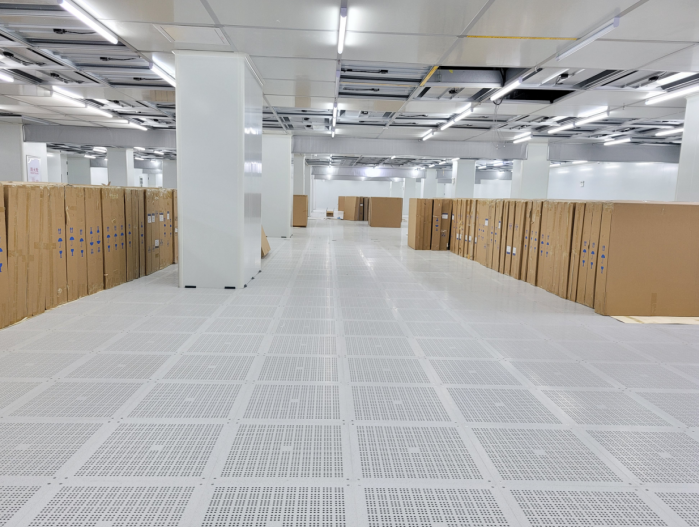

Die cast aluminum raised floor - Ventilation plate
product mix：
Die-cast aluminum raised floor - ventilation board, using high-pressure die-casting technology. After the aluminum ingot is melted, it is vacuum die-casting formed in one go through a high-pressure die-casting machine, integrating the corrosion resistance and high strength characteristics of aluminum alloy. The floor surface can be treated with epoxy powder spraying or nickel chromium electroplating as needed, thereby achieving soft, anti-corrosion, and wear-resistant effects on the surface.
Application field:
Steel supports with different finished surface heights and pipe diameters can be customized to meet different overhead heights and bearing needs. The height of the support itself can be slightly adjusted to solve the local slight elevation difference of the floor. All supports are subject to plating or spraying anti-corrosion treatment.
product features:
1. Multiple ventilation rates, facilitating high-speed and stable airflow passage;
2. High density, high strength, and excellent load-bearing capacity;
3. Waterproof, fireproof, anti-corrosion, antimagnetic, pollution-free, and radiation free;
4. Extremely stable and never decaying performance, with good electrostatic conductivity;
5. 100% recyclable and recyclable.
|
project |
content |
type 500 |
type 700 |
type 1000 |
|
|
1-1 |
Face brick material |
V60AG1000E |
|
||
|
1-2 |
Electrostatic discharge quality of face tile |
10^4-10^9Ω |
|
||
|
2-1 |
Floor material |
Die-cast Aluminum |
|
||
|
2-2 |
uniform load |
1,000kgf/m2 |
1,500kgf/m2 |
2,000kgf/m2 |
|
|
2-3 |
Concentrated load |
500kgf/6.45cm2 |
750kgf/6.45cm2 |
1,000kgf/6.45cm2 |
|
|
2-4 |
ultimate strength |
1,000kgf/6.45cm2 |
1,500kgf/6.45cm2 |
2,000kgf/6.45cm2 |
|
|
2-5 |
Length width tolerance |
600+0.00mm/600-0.20mm |
|
||
|
2-6 |
Thickness width tolerance |
± 0.10mm |
|
||
|
2-7 |
Flatness tolerance |
± 0.20mm |
|
||
|
2-8 |
Diagonal squareness tolerance |
Max. 0.50mm |
|
||
|
3-1 |
Ventilation rate |
50% |
|
||
|
3-2 |
Special treatment options |
Epoxy spraying |
|
||
